Description
6 levers, 0.01-0.50N/m, Au Reflex Coating DESCRIPTION
TIP SPECIFICATIONS
CANTILEVER SPECIFICATIONS A pack of Silicon Nitride Probes Tipless cantilevers for Contact Mode or Fluid TappingMode imaging and force measurement with a variety of extremely low spring constants for high force sensitivity. Unmounted for all AFMs. Quantity=10

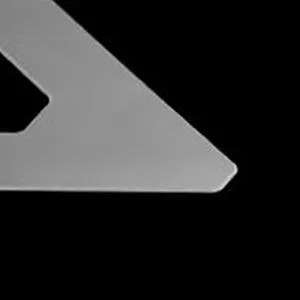

Tipless silicon nitride cantilevers for tip customization or functionalization such as molecule or particle tips. Tip Geometry:
Tipless Cantilever Orientation diagram can be found here. MLCT probes have less than 2deg of cantilever bend. Cantilever Material:
Silicon Nitride Cantilever Thickness (Nom):
0.515 Cantilever Thickness (RNG):
0.485 – 0.545 Cantilever Geometry:
Rectangular & Triangular Cantilevers Number:
6 Back Side Coating:
Reflective Gold
