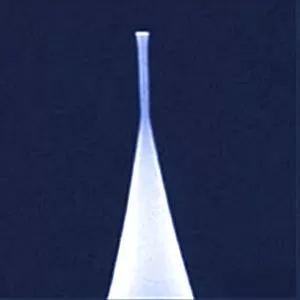

Round Re-Entrant Tips for 3-D imaging Max W = 32 nm, Max OH = 5 nm, Max EL = 220 nm Carbon Coated DESCRIPTION
TIP SPECIFICATIONS CANTILEVER SPECIFICATIONS Round Re-Entrant Tips for 3-D imaging Max Width = 32 nm Max Overhang = 5 nm Max Effective Length = 220 nm Carbon Coated Tip Geometry:
Critical Dimension (Overhang) Tip Height:
10 – 20 Tip Coating:
Amorphous Carbon Tip Set Back( RNG):
5 – 15 The Aluminum reflective coating on the backside of the cantilever increases the laser signal (A+B) by up to 2.5 times. It is to assist the machine vision application on Automated AFMs. Cantilever Material:
0.010 – 0.025 Ωcm Silicon Cantilever Thickness (Nom):
1 – 2 Cantilever Thickness (RNG):
2.8 – 3.8 Cantilever Geometry:
Rectangular Cantilevers Number:
1 Back Side Coating:
Reflective Aluminum
